Freestanding Tension Fabric Lightbox

Description

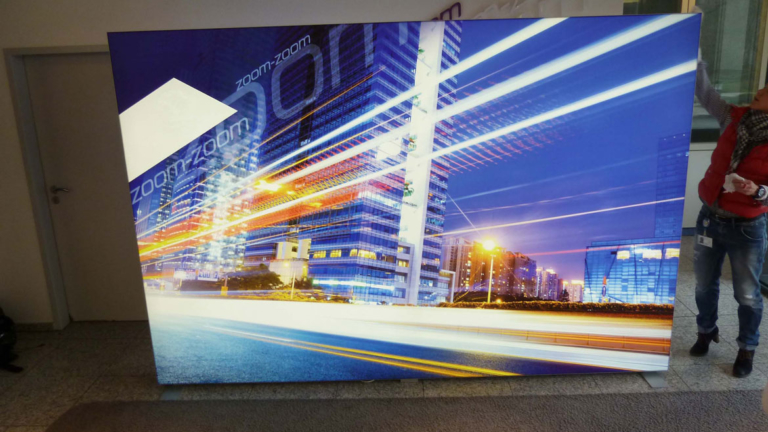

Freestanding tension fabric lightboxes are a great way to get your promotional graphics noticed! The portable light boxes are double-sided fabric fronted illuminated display with weighted feet. The FabriLite tension fabric light box is constructed from 125mm deep aluminium profiles and comes in a standard size of 1m x 2m, it can also be made to custom dimensions.

The freestanding tension fabric light box is essentially an illuminated banner stand. It has LED border illumination along two edge profiles. Lighting comes from Super-Bright 24v Power-LEDs, which offer bright and uniform illumination across the whole of the backlit fabric graphic areas on both sides.

FabriLite freestanding tension fabric lightboxes are usually supplied in kit format for ease of transport and assembly onsite. Assembly of the profiles is simple with the aluminium profiles joined together with corner brackets which are fixed in place with bolts all tightened or undone via an Allen key. LED modules are pre-installed in channels along the two edge aluminium profiles and the driver is slotted in to the channel and easily connected to the LEDs.

As standard the FabriLite Freestanding Tension Fabric lightbox’s profile comes in a silver anodised finish but RAL colours are available at extra cost upon request.

The graphics are printed digitally onto a backlit fabric with a silicone rubber strip sewn on at the edges which is simply pushed into the profile channel on all four sides of the freestanding tension fabric lightbox. When all four sides are pushed into the aluminium profile the print is tensioned evenly across the face.

Need graphics for your freestanding tension fabric lightbox? W&Co can also provide high quality backlit fabric graphic dye-sub prints to make your illuminated fabric banner stand stand out! We can print your graphics within just a few days of receiving your print ready artwork and can be purchased at the same time as your light box.

To view our whole range of Fabric Frames, please click on the following link to see our page for Tension Fabric Systems.

Fabrilite Freestanding tension fabric lightbox Specification

• Dimensions: 1m wide x 2m high as standard. Custom sizes available.
• Profile: Frameless aluminium with channels either side for silcone bar on fabric graphic.
• Depth: 125mm double sided.
• Colour: Silver anodised as standard – RAL colours available at extra cost.
• Back panel: None.
• Illumination: Border Illumination with Super-Bright 24v Power-LEDs
• Print: Backlit fabric material with sewn on silicone rubber strip at edges.
• Graphic Change: Silicone rubber bar sewn around the edges of print pushes into edges of the light box profile.
• Drivers: Power supplies situated inside the light box.
• Accessories: Steel feet enabling the unit to be freestanding.
• Portability: Supplied in kit format for self assemble and ease of transport.
