‘Blade’ Slim Snap Frame Lightbox

Description

The Blade Slim Snap Frame Lightbox is a cost effective slimline LED display light box that can be used for a wide variety of indoor advertising and backlit display graphics.

In terms of depth, the snap frame light box is super slimline at only 18mm deep for the single sided option, and 30mm deep for the double sided option. This makes the Blade Slim Snap Frame Light Box one of the thinnest light boxes on the market and enables it to fit smartly onto most wall spaces.

The slimline depth of the lightbox is achieved by using an LED light panel to illuminate the graphic from behind. The LED light panel, which situated in the rear of the lightbox, is a thin sheet of pure, clear acrylic which has been specially developed for lighting applications.

It is illuminated from the edge by a strip of high brightness LED lights giving a bright, even light distribution with no visible spotting or shadowing. The LEDs are low voltage so consequently they are a very cost effective way of illuminating the light box.

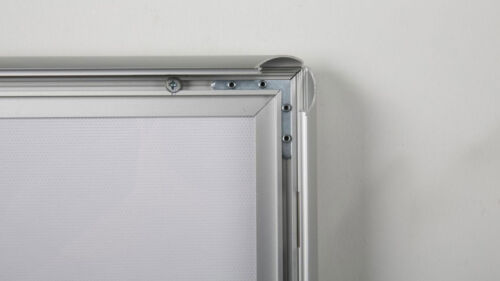

Blade slim display light boxes have a 25mm wide aluminium snap frame profile around the front illuminated display area. This in effect makes the lightbox like an illuminated poster frame. The snap frame enables a very quick and easy graphic change. The robust aluminium profiles come in a standard silver anodised aluminium finish.

The Blade Ultra Slim Snap Frame Lightbox is held in stock in standard poster sizes: A4, A3, A2, A1 and A0, other sizes can be made to order including: 20″ x 30″ and 30″ x 40″.

Further to this, the snap frame lightboxes are supplied with wall hangers, so they can be easily mounted to the wall in either portrait or landscape orientation. The double sided version of the lightbox is supplied with a ceiling hanging cable kit included.

Therefore, the Slim Snap Frame Lightbox is ideal for applications such as retail promotional displays, showrooms and menu displays, as well as for making an impact in your office, reception or shopping area. For an outdoor LED Lightbox with a Snap Frame, which also lockable, please click on this link: Astra Outdoor Lockable LED Lightbox

Specification

• Dimensions: Poster sizes A0, A1, A2, A3, A4 as standard, other sizes and double sided made to order.
• Depth: 18mm deep single sided (30mm deep double sided).
• Snap Frame Profiles: 25mm wide
• Colour: Silver Anodised Aluminium.
• Front Sheet: Clear anti-glare.
• Lighting panel: 8mm clear acrylic light panel specially developed for lighting applications.*
• Illumination: High brightness & long life LEDs** with cable, external transformer and plug.
• Cable exit: From side of base profile as standard.
• Certification: This product is CE Certified.

*Brightness can vary slightly on different sized lightboxes backlit with LED light panels.

**LEDs used have a long life expectancy rating of L70 Lumen maintenance at 50,000 hours; meaning the LEDs will offer circa 70% of original light output at 50,000 hours.

Please see table below for sizes and brightness
