Titan Backlit Lightbox

Titan Backlit Lightbox

  • Outdoor (or Indoor).
  • Robust Aluminium Profiles.
  • Single or Double Sided.
  • From 90mm Deep
  • Side Loading Graphic Panels.
  • Backlit with LEDs.
  • Silver Anodised Aluminium as standard. RAL Colours available at extra cost.
  • Standard prices are for silver anodised finish with a 3mm opal acrylic panel and 2mm clear acrylic panel suitable for sandwiching a backlit print (print not included)
Quantity

Description

The Titan backlit light box is a traditional style of illuminated lightbox sign made from high quality aluminium profiles making them very robust and durable. These light boxes are often used for shop fascia signs, illuminating posters for outdoor advertising, or can be supplied with a wall bracket making them perfect for Illuminated Projection Signs too. The Titan light box is produced for outdoor applications allowing water to pass through its profiles giving it a good level of weather resistance.*

Titan light box signs are supplied with either two acrylic front panels, one opal diffuser panel and one anti glare panel, to sandwich a print between; or just one acrylic opal diffuser panel with a print direct to the surface or for applying self-adhesive vinyl graphics to. The graphics and acrylic panels are kept securely in place by bezels which are screw fixed into position. To change the graphics these are simply unscrewed allowing the panels and graphics to slide out from the side.

The Titan backlit light box is available in standard sizes including: A2, A1, A0, 30″ x 40″ and 40″ x 60″ or can be custom made to your specific size requirements. The light box comes in two depths; the Titan Classic light box is just 90mm deep single sided or 100mm deep for double sided applications such as illuminated projection signs and the Titan Maxicase light box is 165mm deep single sided and 175mm deep double sided, the type of Titan light box depends on size and application.

For extra larger sizes of outdoor light box signs we offer Flex Face light boxes which have a printed PVC banner face; or for larger indoor applications we offer Tension Fabric Face light boxes which have a fabric print stretched over the front.

Specification

Titan Classic

  • Dimensions: Suitable for lightboxes up to A0 size (1189 x 841mm), or height of up to circa 800mm.
  • Depth: 90mm deep single sided, or 100mm double sided (see Titan Projector).
  • Frame: 19mm wide beading.
  • Profiles: Aluminium side profile and beading frame fixed with fastening screws.
  • Colour/Finish: Silver Anodised as standard (RAL colours on request).
  • Front Panels: A 2mm anti-glare clear acrylic with a 3mm 050 opal acrylic diffuser panel. Or just one 5mm 050 opal acrylic diffuser panel.
  • Illumination: Backlit with individual LEDs.

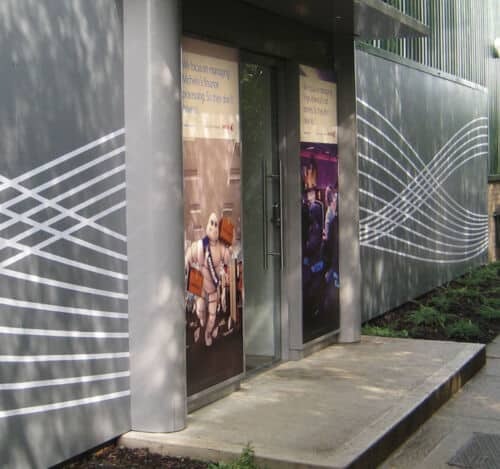

Titan Maxicase

  • Dimensions: Suitable for larger box sizes that are 700mm-2000mm in height.
  • Depth: 165 / 207mm deep single sided, or 175 / 220mm double sided.
  • Frame: 27 / 50mm wide square beading for 5mm / 6mm panels.
  • Profiles: Aluminium side profile and beading frame fixed with fastening screws.
  • Colour/Finish: Silver Anodised as standard (RAL colours on request).
  • Front Panels: A 2mm anti-glare clear acrylic with a 3mm 050 opal acrylic diffuser panel. Or just one 5mm 050 opal acrylic diffuser panel.
  • Illumination: Backlit with individual LEDs.

Advisory Notes:
This product is weather resistant but not waterproof. Due to changes in atmospheric humidity and water vapour in the air, condensation can occur in any poster case or notice board, similar to the inside of a car window, especially when changing the posters. If condensation does occur, simply air out the poster case (when weather is dry) to ensure moisture is evaporated.
Posters should be sealed to prevent prints becoming damaged if they come into contact with moisture or condensation.
When installing this product, ensure you mount to a flat and even surface and take care not to over tighten the fixings as you may distort the back panel and cause damage.

NB. W&Co endeavours to supply light boxes with the most even illumination, however, there is still a potential for uneven illumination in backlit light boxes and spotting can occur in LED illuminated backlit light boxes. For best illuminated graphic results in backlit light boxes please avoid large areas of single solid colours in the digital artwork. If you are unsure whether artwork is suitable please contact one of our technicians for advice.
