Metro LED External Poster Case

Metro LED External Poster Case

  • Outdoor (Water Resistant IP56 rated).
  • Lockable, comes with lock and key.
  • Front Door hinges open for easy poster change.
  • Slimline only 58mm deep.
  • Evenly Illuminated with LED Light Panel.
  • Non-illuminated option available.
  • Toughened Safety Glass Window Panel.
  • Robust Aluminium Profiles.
  • Silver anodised as standard, RAL colours available.
  • Standard Sizes include: A2, A1, A0, 700 x 1000mm, 1000mm x 1400mm
Quantity

Description

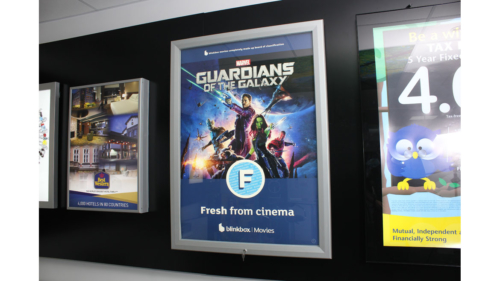

The Metro LED External Poster Case is a lockable illuminated display for promotional and outdoor advertising applications.

Made for outdoor use, but can be used inside, the Metro LED external poster case is designed to be weather resistant with an IP56 rating. This is achieved using special built-in silicone gaskets fitted to the base profiles with the front cover fitting tightly over the top to create a water resistant seal.

The poster case itself is robust and secure having heavy duty aluminium profiles and a toughened safety glass fascia panel. The front door panel has a lock fitted into the profile and is easily lockable with a key supplied.

For ease of graphic changing, the front cover of the light box hinges open from the top and is fitted with either a support bar or gas stays to aid opening depending on the size.

The graphic is held in place with 16mm aluminium clip frames situated at the top and the bottom of the base profile, making it very easy for anyone to change the printed poster when needed.

The bright and even illumination of the graphic is obtained by using a high quality LED Light Panel situated inside the rear of the light box, specially developed for outdoor lighting applications. The light panel is illuminated at the edges with high bright LEDs offering an even back illumination to the print with no spotting or shadowing. The Metro external poster case is also available as a non-illuminated version if preferred.

The Metro LED external poster case is the ideal outdoor advertising display solution for external locations such as: high streets, shopping precincts, car parks and theatres.

To see our whole range of poster cases, please click on the following link for our main page for Poster Cases.

Specification

  • Overview: Outdoor illuminated poster case illuminated by an LED light panel. Heavy duty aluminium front cover with clear toughened safety glass and top hinge. Supplied with 16mm snap poster rails for easy poster insertion.
  • Poster Dimensions: A2, A1, A0, 700 x 1000mm, 1000mm x 1400mm
  • Depth: only 58mm.
  • Profile: 63mm wide aluminium frame.
  • Colour: Silver Anodised as standard. RAL colours are available upon request.
  • Protection panel: Clear toughened ESG safety glass.
  • Lighting panel: 8-10mm clear LED light panel. Non-Illuminated option available.
  • Illumination: White LEDs (+/- 5000K) with cable.
  • Electrics: 12/24V indoor transformer which must be housed either indoors or within an IP rated enclosure.
  • Access to poster: Top hinged key lockable door with rubber seals and support bars or gas struts.
  • Poster holder: 16mm snap profile poster rail.
  • Posts: Optional set of 2 aluminium profile posts which can either be inserted into the ground (2500mm length) or bolt fixed to the ground with a base plate (2000mm length).
  • IP Rating: IP56 – Water Resistant. Totally protected against dust. Protected against strong jets of water – limited ingress permitted. NB the case is water resistant not waterproof, some condensation may occur, ensure the print used is waterproof.
  • Certification: This product is CE Certified

Advisory Notes:
As with all poster cases, this product is weather resistant but not waterproof. Due to changes in atmospheric humidity and water vapour in the air, condensation can occur in any poster case or notice board, similar to the inside of a car window, especially when changing the posters. If condensation does occur, simply air out the poster case (when weather is dry) to ensure moisture is evaporated.
Posters can be sealed to prevent prints becoming damaged if they come into contact with moisture or condensation.
When installing this product, ensure you mount to a flat and even surface and take care not to over tighten the fixings as you may distort the back panel and cause damage.

The specification table below shows the visual, poster and overall sizes for this unit:

Item Weight
(KG
Depth
(mm)
Visual size (mm) Poster size (mm) Overall size (mm)
W H W H W H
A2 10.8 58 420 594 420 594 546 720
A1 16.8 58 594 841 594 841 720 967
A0 30.0 58 841 1189 841 1189 967 1315
700 x 1000 23.6 58 700 1000 700 1000 826 1126
1000 x 1400 40.0 58 1000 1400 1000 1400 1126 1526
