Jet Illuminated Poster Case

Description

The Jet LED illuminated poster case, or non-illuminated, is a high quality, weather resistant and lockable promotional display unit.

Made for outdoor use (but can be used indoor too), Jet illuminated poster cases are weather resistant with an IP56 rating. The cases are robust and secure having heavy duty aluminium profiles, they come with a toughened safety glass fascia panel and a key lockable front cover with 1 or 2 locks.

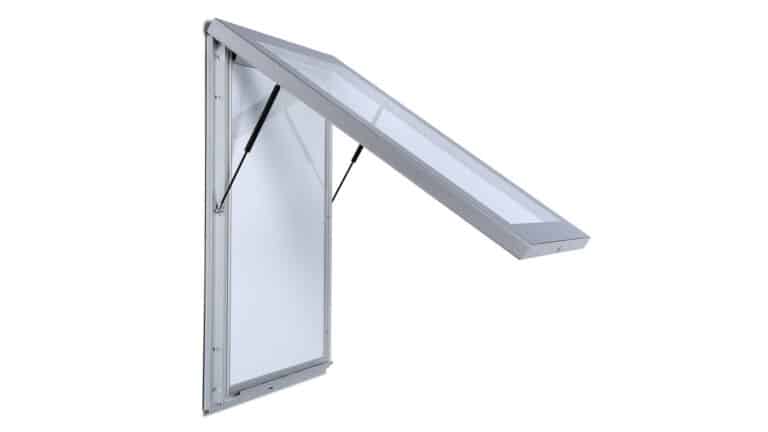

The front cover of the lockable poster case hinges open from the top and is fitted with gas stays which support the door while you change the poster via the internal snap frame system. The graphic is held in place with 25mm aluminium clip frames situated at the top and bottom of the base profile.

In the lit version of the poster case, the bright and even illumination of the graphic is obtained by using a high quality dot matrix laser etched LED light panel inside the case. The light panel is illuminated at the edges with high bright LEDs offering an even back illumination to the print. The Jet Poster Case is also available as a non-illuminated version.

The Jet Lockable Poster Case is an ideal outdoor advertising display solution for external locations such as: high streets, shopping precincts, car parks, theatres, cinemas, restaurants, petrol station forecourts, train stations, nightclubs, and sport centres.

The Jet Poster Case is available as a single sided display for flat external wall mounting or as a Freestanding, double-sided version for ground fixing.

The standard sizes available are: A1, A0, 700 x 1000mm, 1000 x 1400mm and 1200 x 1800mm.

Specification

• Poster Dimensions: A1 Portrait (594mm x 841mm), A0 Portrait (841mm x 1189mm), 700x1000mm, 1000x1400mm, 1200x1800mm.
• Visible Dimensions: Poster Size -23mm.
• Overall Dimensions: Poster Size +143mm.
• Depth: from only 62mm.
• Front Panel: 4mm toughened safety glass, with an 80mm screen printed border. Black as standard, other colours available for quantities upon request.
• Back Panel: 0.5mm metal sheet.
• Frame Colour: Silver anodised as standard. Powder coated to a standard RAL colour for additional cost upon request (minimum order quantities apply).
• Lighting panel: 8mm thick LED light panel with laser etched dot matrix pattern. Non-Illuminated option available.
• Illumination: High bright white LEDs.
• Electrics: 12/24V indoor transformer which must be housed either indoors or within an IP rated enclosure.
• Mounting: Wall Mounted/Single Sided or Ground Fixed/Double Sided.
• Access to poster: Top hinged key lockable door on gas struts with 1-2 locks on the underside. Tamper proof.
• Poster holder: Internal 25mm aluminium snap frame profiles at the top and bottom of the poster case.
• IP Rating: IP56 – Water Resistant. Totally protected against dust. Protected against strong jets of water – limited ingress permitted. NB the case is water resistant not waterproof, some condensation may occur, ensure the print used is waterproof.
• Certification: This product is CE Certified

Advisory Notes:
As with all display cases, this product is weather resistant but not entirely waterproof. Due to changes in atmospheric humidity and water vapour in the air, condensation can occur in any poster case or notice board, similar to the inside of a car window, especially when changing the posters. If condensation does occur, simply ‘air out’ the poster case (when weather is dry) to ensure moisture is evaporated.
Therefore, posters should be sealed to prevent prints becoming damaged if they come into contact with moisture or condensation.
When installing this product, ensure you mount to a flat and even surface and take care not to over tighten the fixings as you may distort the back panel and cause damage.

The specification table below shows the visual, poster and overall sizes for this unit:
